oil pump testing machine

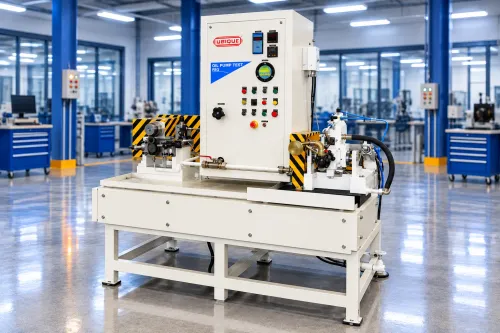

Ubique Systems designs oil pump and water pump test rigs that reproduce application-specific speed, back pressure, temperature and suction conditions. The system measures pump flow and pressure response at defined operating points, helping manufacturers verify fluid-delivery performance before the pump assembly reaches the vehicle. What is the purpose of this machine? A pump test machine validates whether an oil pump or water pump delivers the required fluid flow under the conditions expected in the application. The machine drives the pump at controlled speeds and circulates oil, coolant or another specified test fluid through a controlled circuit. It can generate defined back pressure, condition the fluid temperature, simulate negative suction head and measure the pump’s response. The oil pump version is suited to engine lubrication, transmission lubrication, hydraulic and other fluid-delivery applications. The water pump version is suited to engine cooling, thermal management and coolant circulation. The test rig can be designed for multiple pump variants with limited fixture changeover. Why is pump EOL testing important? A pump may rotate correctly and still fail to deliver sufficient flow at operating pressure or temperature. Low flow, excessive flow, pressure instability, internal slip, inlet restriction, cavitation risk or wrong rotation can lead to lubrication failure, overheating or insufficient cooling. EOL pump testing measures the actual performance curve of the finished assembly and provides an objective release decision. Typical working sequence The pump is located in a dedicated fixture and identified by barcode. The correct recipe sets speed, temperature, pressure, suction and test duration. The drive motor rotates the pump while the circuit controls back pressure and fluid condition. Flow, pressure, temperature and input conditions are continuously measured. The software compares the values with the programmed acceptance window, stores the result and can transfer data to MES. Typical machine features Ubique’s first-party oil-pump and water-pump pages describe customer-specific fixtures, variable speed through an AC variable drive controlled motor, variable back pressure through a manual or servo-controlled valve, high-back-pressure flow measurement, multiple circuit lines, controlled fluid temperature, suction-head simulation, PC plus PLC software, MES transfer, barcode, variant programs and closed-loop filtration.[4][5] Recommended feature wording: • Oil or coolant circuit designed for the application. • Controlled speed, back pressure and test-fluid temperature. • Manual or servo-controlled pressure regulation. • Flow measurement at zero and defined back pressure. • Negative suction-head simulation where required. • Multiple circuits for multi-variant or multi-pump testing. • Closed-loop filtration and fluid conditioning. • Automated fill, drain and level interlocks where required. • PC/PLC control, barcode recipes, reports and MES connectivity. Similar or related machines to include For oil pumps: engine oil pump test rig, transmission oil pump tester, lubrication pump test bench, hydraulic pump flow test machine, automotive pump performance tester, oil pump pressure-flow test rig. For water pumps: automotive water pump tester, engine coolant pump test rig, vehicle cooling system pump tester, electric water pump test bench, coolant flow test machine, thermal-management pump EOL tester.
