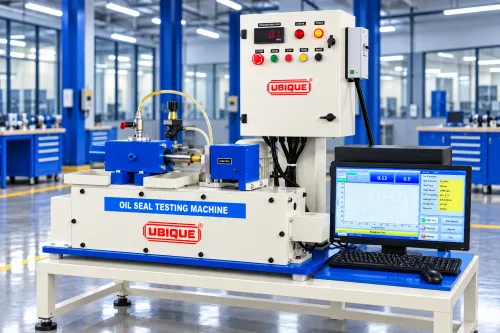

Product Overview The UBIQUE Oil Seal Lip Radial Load Tester (Model OSRL) is designed to measure the force exerted by oil seal lip/s on the mating shaft in static condition. The machine is based on the test procedure laid down in SAE J1901 Split Shaft Method. Test Method The tester is based on the SAE J1901 Split Shaft Method for measuring the force exerted by oil seal lip/s on the mating shaft while the seal is in a static condition. Dedicated Mandrels and Shaft Simulation The machine is designed to simulate shaft diameters from 15 mm to 200 mm by using suitable size-specific dedicated mandrels. Dedicated tooling can therefore be selected according to the oil seal application and shaft diameter being evaluated. Force Measurement and Digital Display The tester incorporates a dedicated microcontroller and digital display. The force measuring unit can be selected in Newton (N), Kilogram-force (kgf) or Newton-Pi (NΠ), as specified for the machine. Test Data Acquisition The machine is supplied with dedicated Windows-based PC software for online uploading of test results. Test data can be uploaded as an .xls file with a date-time stamp using Microsoft Excel. Typical Applications • Oil seal manufacturing and quality control • Automotive component manufacturing • Oil seal inspection and testing • Testing and quality-control laboratories • Product development and evaluation of oil seal applications Selected Users The supplied UBIQUE product information lists users including Super Seals India Ltd., Paul Auto Components, LML Ltd., Swastik Rubber Products Ltd., Sundaram Industries Ltd., BMF Beltings Pvt. Ltd., Fenner India Ltd., Kay Kay Fluid Seals Ltd., Polybond India Pvt. Ltd., Suja Rubber Products Pvt. Ltd., Kross International, Endurance Technologies Ltd., Bruss North America, ESP Engineered Components Pvt. Ltd., Perfect Polymer and Fersa Bearings Spain.

Product Overview UBIQUE Oil Seal Lip Opening Pressure Tester is designed for measuring the Lip Opening Pressure (LOP) of oil seals based on the test procedure outlined in SAE J946. The tester uses an electronic Mass Flow Controller to control and measure air flow at 10,000 cc/min and an electronic pressure sensor to sense the pressure registered during the test. A digital display provides the LOP reading. Customised Mandrel Assembly The mandrel assembly is custom-built to suit the individual oil seal. The supplied specification lists dedicated tooling ranges for oil seals with outside diameters up to 100 mm, 101–150 mm and 151–200 mm. The machine specification states a maximum oil seal OD of 300 mm. Typical Applications • Oil seal manufacturing and quality control • Automotive component manufacturing • Inspection and testing laboratories • Product development and validation • Testing of individual oil seal designs and sizes Oil Seal Lip Opening Pressure Tester Manufacturer in [City] UBIQUE Industrial Systems manufactures Oil Seal Lip Opening Pressure Testers for customers requiring SAE J946-based LOP testing. The system combines electronic flow control, pressure sensing, digital indication and dedicated tooling for individual oil seal applications. Replace [City] with the target city when this document is used as content for a city-specific website.

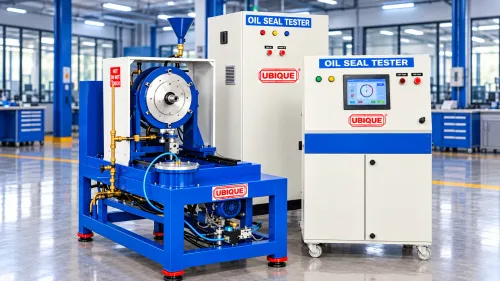

Product Overview UBIQUE Oil Seal Endurance Tester is designed to evaluate the performance, endurance and durability of rotary shaft type oil seals under controlled operating conditions. Based on the test procedure outlined in SAE J10, the machine simulates important service conditions such as shaft rotation, elevated temperature, pressure, oscillation, dust and mud exposure. The tester is built with a heavy-duty fabricated structure for reliable long-term operation. It uses dedicated tooling comprising a housing flange and shaft stub designed for the specific oil seal under test. The machine enables manufacturers, automotive component suppliers and testing laboratories to assess seal performance and measure oil leakage during endurance testing. Controlled Endurance Testing The machine allows the operator to create a test cycle by entering the oil seal identification, part number, housing and shaft dimensions, media temperature, shaft speed, direction of rotation, pressure settings, oscillation status, dust or mud chamber operation, test duration and number of cycles. During the test, the HMI displays the programmed and actual test parameters. This enables the operator to monitor the test condition and record relevant observations. An online industrial PC with dedicated LabVIEW-based software is available as an accessory for multiple test programs and automatic data acquisition with date and time stamps. Environmental Simulation The Oil Seal Endurance Tester can simulate demanding operating environments. The heated media sump supports testing at temperatures up to 150°C. Regulated air pressure can be applied to reproduce pressure conditions. The optional dust chamber introduces agitated dust into the test area, while the optional mud chamber uses a motor-driven paddle stirrer to prevent settling of the test slurry. Only one environmental chamber, either the dust chamber or the mud chamber, can be mounted on the housing flange away from the machine spindle at a time. Typical Applications • Oil seal performance, endurance and durability testing • Automotive component manufacturing • Oil seal manufacturing and quality control • Research and development laboratories • Product validation and design comparison • Testing under heat, pressure, dust, mud and oscillation conditions • Evaluation of oil leakage over a defined test cycle Oil Seal Endurance Tester Manufacturer in [City] UBIQUE Industrial Systems manufactures Oil Seal Endurance Testers for controlled performance and durability evaluation of rotary shaft type oil seals. The system combines dedicated application-specific tooling, variable shaft speed, heated test media, pressure and oscillation simulation, optional dust or mud exposure, HMI-based test control and oil leakage measurement.
