gear roll tester

• Category: Automated Gear Metrology Systems • Short Summary: Motorized vertical double-flank gear tester integrated with PC software for automated measuring and real-time analysis of Total Composite Error (TCE), Tooth-to-Tooth Error (TTE), Runout, Over ball diameter and Jerky rolling on shaft-integrated and long-profile gears. Key Highlights • Shaft-Optimal Vertical Alignment: Between-centers mounting eliminates sagging and bending during motorized inspection of pinion shafts. • Automated Pass/Fail Verdicts: Software checks measured curves against defined tolerance limits for rapid production quality control. • Real-Time Graphical Diagnostics: Live profile display of composite error waves, eccentricity, and tooth mesh defects directly on screen. • Material: Machine bed manufactured from Seasoned and Stress relieved Casting and manually scraped to achieve required accuracy. • Fast Quality Control: Quick results ideal for Quality labs.

• Category: Quality Control & Gear Metrology Equipment • Short Summary: Precision vertical double-flank gear tester engineered to measure total composite error specifically for shaft gears. Key Highlights • Shaft-Optimal Alignment: Vertical mounting between centers prevents sag and bending during inspection. • Ergonomic Loading: Open column design simplifies clamping for longer shaft. • Micron Repeatability: Linear optical scale delivers high-precision composite error detection. • Material: Machine bed manufactured from Seasoned and Stress relieved Casting and manually scraped to achieve required accuracy. • Fast Quality Control: Rapid manual loading ideal for production-line inspection. • Versatile Mounting: Accommodates both shaft-type and bore-type precision gears.

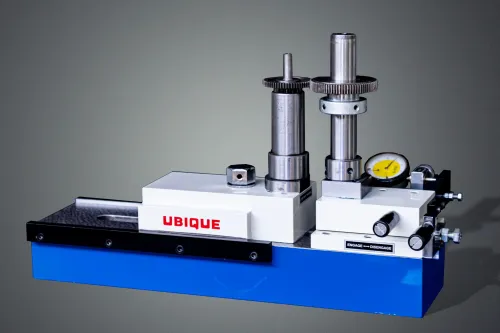

Category: Quality Control & Gear Metrology Equipment Short Summary: High-precision horizontal double-flank gear tester designed to measure total composite error in micro to small gears Key Highlights Micron-Level Precision: Low-friction linear bearings ensure high repeatability. Material: Machine bed manufactured from Seasoned and Stress relieved Casting and manually scraped to achieve required accuracy. Fast Quality Control: Rapid manual loading ideal for production-line inspection. .
