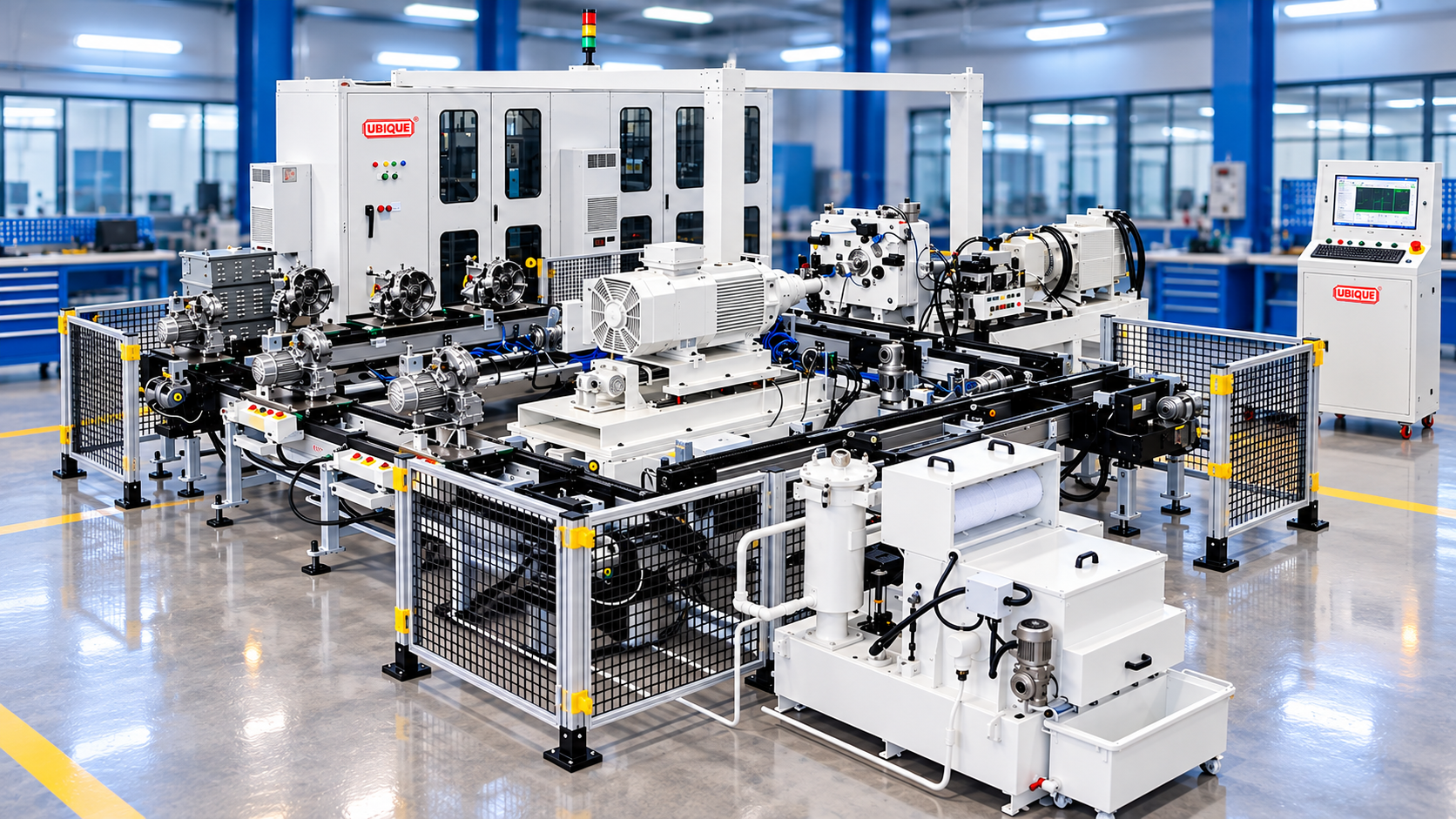

Ubique Industrial Systems’ gearbox and transmission testing machines are customized End-of-Line test rigs for tractor, passenger vehicle, commercial vehicle, heavy vehicle and e-mobility transmissions. The system can verify ratios, speed, torque transfer, gear engagement, shift behaviour, hydraulic functions, oil flow and NVH under defined operating conditions, with variant-specific recipes and traceable results.
What is the purpose of this machine?
A transmission testing machine checks whether a completed gearbox or transmission assembly performs its intended mechanical and hydraulic functions before it is installed in a vehicle or released to the next stage. The machine couples the transmission to a controlled drive system and, where required, a controlled loading system. The test sequence can command different gears, speeds, directions and load conditions while sensors record the response.
The machine may be configured for a tractor transmission, manual transmission, automatic transmission, reduction gearbox, e-axle gearbox, transfer assembly or another customer-defined powertrain unit. The fixture, splined adapters, couplings, oil circuits, electrical interfaces and software are designed around the unit-under-test and its variant family.
Typical working sequence
The operator or automated material-handling system identifies the transmission by barcode or production ID. A poka-yoke fixture confirms correct variant orientation and seating. The machine connects the required shafts, hydraulic lines, lubrication circuit and electrical interfaces. The system may fill or condition oil before testing, select a customer-defined recipe, rotate the input at programmed speeds, engage selected gears, apply a defined load and record the resulting measurements. At the end of the sequence, the system generates a pass/fail result, stores the data and can print or transmit the report to the customer’s MES.
Typical machine features
Ubique’s first-party transmission material describes customized fixtures for multiple transmission variants, optional loaded testing, variable load and speed, automatic adaptation, automatic motor engagement, torque transducers, high-resolution incremental encoders, PC and PLC control, dedicated software, MES linkage, barcode scanning and printing, and turnkey functions such as oil filling and draining.
• Category: Automated Gear Metrology Systems
• Short Summary: Motorized vertical double-flank gear tester integrated with PC software for automated measuring and real-time analysis of Total Composite Error (TCE), Tooth-to-Tooth Error (TTE), Runout, Over ball diameter and Jerky rolling on shaft-integrated and long-profile gears.
Key Highlights
• Shaft-Optimal Vertical Alignment: Between-centers mounting eliminates sagging and bending during motorized inspection of pinion shafts.
• Automated Pass/Fail Verdicts: Software checks measured curves against defined tolerance limits for rapid production quality control.
• Real-Time Graphical Diagnostics: Live profile display of composite error waves, eccentricity, and tooth mesh defects directly on screen.
• Material: Machine bed manufactured from Seasoned and Stress relieved Casting and manually scraped to achieve required accuracy.
• Fast Quality Control: Quick results ideal for Quality labs.
• Category: Quality Control & Gear Metrology Equipment
• Short Summary: Precision vertical double-flank gear tester engineered to measure total composite error specifically for shaft gears.
Key Highlights
• Shaft-Optimal Alignment: Vertical mounting between centers prevents sag and bending during inspection.
• Ergonomic Loading: Open column design simplifies clamping for longer shaft.
• Micron Repeatability: Linear optical scale delivers high-precision composite error detection.
• Material: Machine bed manufactured from Seasoned and Stress relieved Casting and manually scraped to achieve required accuracy.
• Fast Quality Control: Rapid manual loading ideal for production-line inspection.
• Versatile Mounting: Accommodates both shaft-type and bore-type precision gears.
Product Overview
The UBIQUE Oil Seal Lip Radial Load Tester (Model OSRL) is designed to measure the force exerted by oil seal lip/s on the mating shaft in static condition. The machine is based on the test procedure laid down in SAE J1901 Split Shaft Method.
Test Method
The tester is based on the SAE J1901 Split Shaft Method for measuring the force exerted by oil seal lip/s on the mating shaft while the seal is in a static condition.
Dedicated Mandrels and Shaft Simulation
The machine is designed to simulate shaft diameters from 15 mm to 200 mm by using suitable size-specific dedicated mandrels. Dedicated tooling can therefore be selected according to the oil seal application and shaft diameter being evaluated.
Force Measurement and Digital Display
The tester incorporates a dedicated microcontroller and digital display. The force measuring unit can be selected in Newton (N), Kilogram-force (kgf) or Newton-Pi (NΠ), as specified for the machine.
Test Data Acquisition
The machine is supplied with dedicated Windows-based PC software for online uploading of test results. Test data can be uploaded as an .xls file with a date-time stamp using Microsoft Excel.
Typical Applications
• Oil seal manufacturing and quality control
• Automotive component manufacturing
• Oil seal inspection and testing
• Testing and quality-control laboratories
• Product development and evaluation of oil seal applications
Selected Users
The supplied UBIQUE product information lists users including Super Seals India Ltd., Paul Auto Components, LML Ltd., Swastik Rubber Products Ltd., Sundaram Industries Ltd., BMF Beltings Pvt. Ltd., Fenner India Ltd., Kay Kay Fluid Seals Ltd., Polybond India Pvt. Ltd., Suja Rubber Products Pvt. Ltd., Kross International, Endurance Technologies Ltd., Bruss North America, ESP Engineered Components Pvt. Ltd., Perfect Polymer and Fersa Bearings Spain.
Oil Seal Tester
