What is the purpose of this machine?

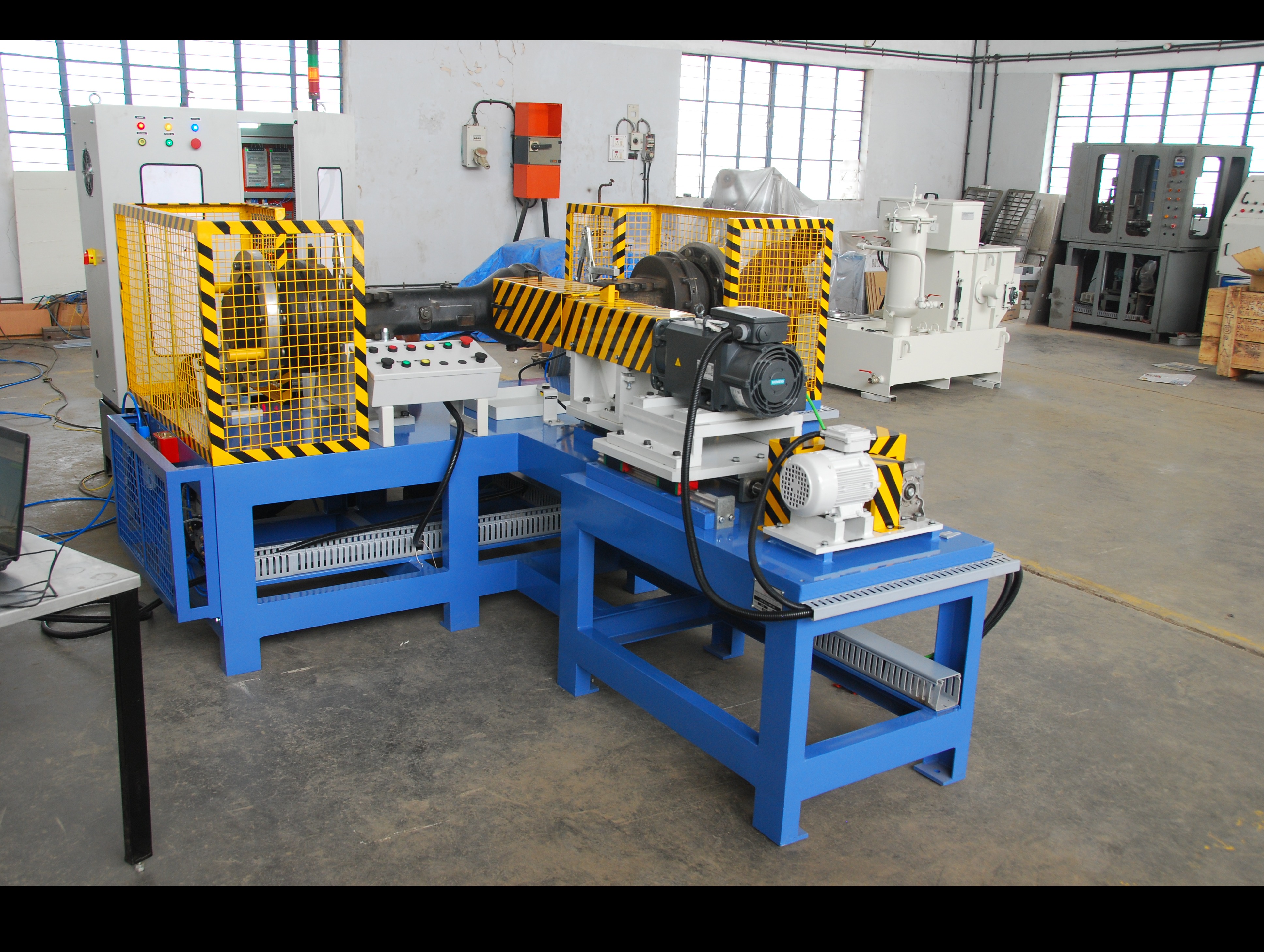

An axle testing machine checks a complete front axle, rear axle, drive axle or axle subassembly before shipment or vehicle integration. The test rig supports the assembly at its functional datums, connects the drive and output interfaces, and applies controlled speed and loading. Depending on the axle architecture, the system can test differential operation, wheel-end response, gear mesh, lubrication and noise behaviour.
Ubique’s existing product structure distinguishes front axle and rear axle test rigs, allowing the website to create separate application pages while keeping them within one axle testing family.[3]
Why is axle EOL testing important?
The axle is a critical driveline and chassis assembly. Incorrect gear mesh, wrong ratio, bearing drag, excessive backlash, poor lubrication, seal leakage or assembly misalignment can result in noise, heat generation, poor drivability or premature wear. Detecting these conditions after vehicle assembly can cause line stoppage and expensive rework. EOL axle testing provides a controlled release gate before the unit reaches the vehicle.
Typical working sequence
The axle is loaded using a customer-specific fixture and identified by barcode. The machine connects to the input pinion, axle shafts, hubs or output interfaces as required. The control system commands the defined speed and load profile. It may run forward and reverse directions, check ratio, measure torque and capture vibration or acoustic signals. The software records the result against the axle serial number and can interface with MES or print a report.
